SRS-16L

SRS Semi-hermetic Single- stage Screw Compressors include 20 models, displacement 85- 500m3/h  (50Hz), designed pressure 2.8Mpa，applicable for R717. Compact structure,  easy maintenance, low vibration and noise, zero leak of refrigerant. The  compressor is packaged with the permanent magnet synchronous variable  frequency motor, which regulates the rotor speed to improve the operation efficiency of the compressor.

Features of SRS semi-hermetic single-stage screw compressor

• “I” type patented profile, best lobe ratio of 5+7,high efficiency.
• Compact structure: filter, shut- off valve, temperature sensor, and oil flow switch are integrated;
• Tailor- made materials are specifically used for NH3.
• Packaged  with the permanent magnet synchronous variable frequency motor, which  regulates the rotor speed to improve the operation efficiency of the compressor.
• Vi stepless control: manual or automatic.
• Capacity control: step or stepless.
• Embedded 100μm suction filter: remove the impurities of the refrigerant and protect the motor.
• High- efficiency cooling is achieved through refrigerant circulation to ensure the stable and efficient operation of the motor.

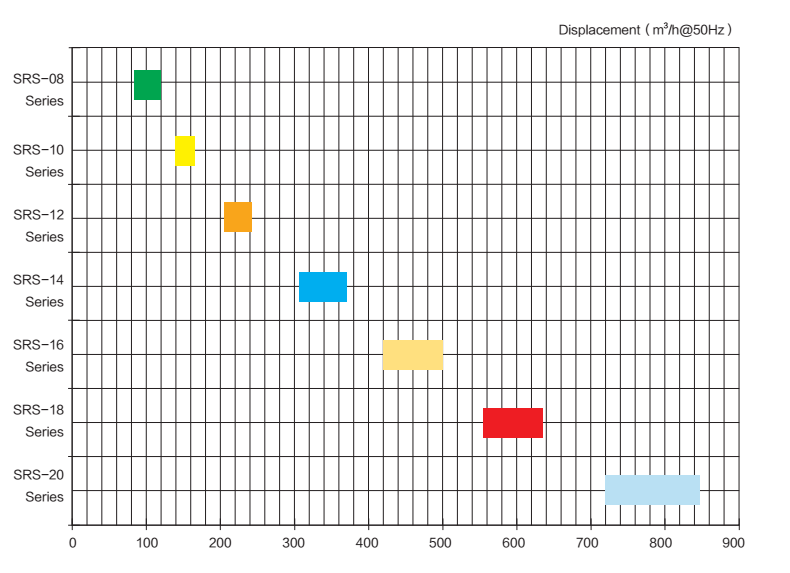

Comparison of Exhaust Volumes of Semi-hermetic Single-stage Screw Compressors

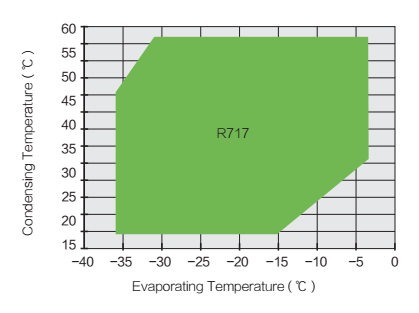

Application Scope of SRS Semi-hermetic Single-Stage Screw Compressor
