SRC-S-183/213

RefComp SRC- S Series include 18 models, applicable in the refrigeration conditions of medium and high evaporating temperatures. SRC- S compressors are characterized by embedded oil separator, compact design, easy installation, low noise, high efficiency, etc.. They can be best configured in line with various applications and conditions, e.g. full- flooded normal temperature/high- temperature heat pump and water chiller.

Product Features:

• Asymmetric screw rotor designed by RefComp, lobe ratio5/6, excellent lubrication, perfect meshing between teeth, smooth and quiet operation of the compressor.
• Small size, filter, cut- off valve, and temperature sensor are integrated into the compressor body. Optimized design, less space required.
• Motor protection module provides reliable protection against motor overheating, phase reversal and phase loss.
• Real-time tracking provides the operation status of the motor and system.
• Multiple duplex bearings is able to avoid rotor axial / radial wear, resulting in high load and low noise.
• Embedded oil separator.
• Multi- step separation, oil efficiency as high as 99.85%.
• Embedded 100μm high-density suction filter, easy to replace.
• Unique structure and space design, using the subcooled refrigerant gas between suction shut- off valve and the inlet side of the screw to effectively cool down the motor.
• Suction/discharge shut- off valves are able to reverse 360° , which are easily installed with flexibility.
• Embedded safety valve: high specification design, safe and reliable.

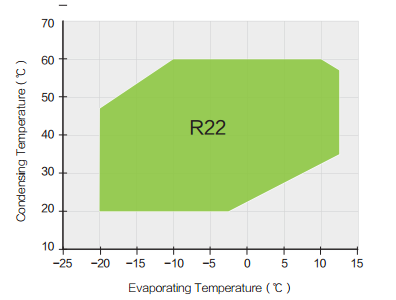

Application Scope:
